The Singer Co. - Electric Motor with Splined Shaft (NOS):
$3999.99

Genuine U.S. Military Issue Surplus

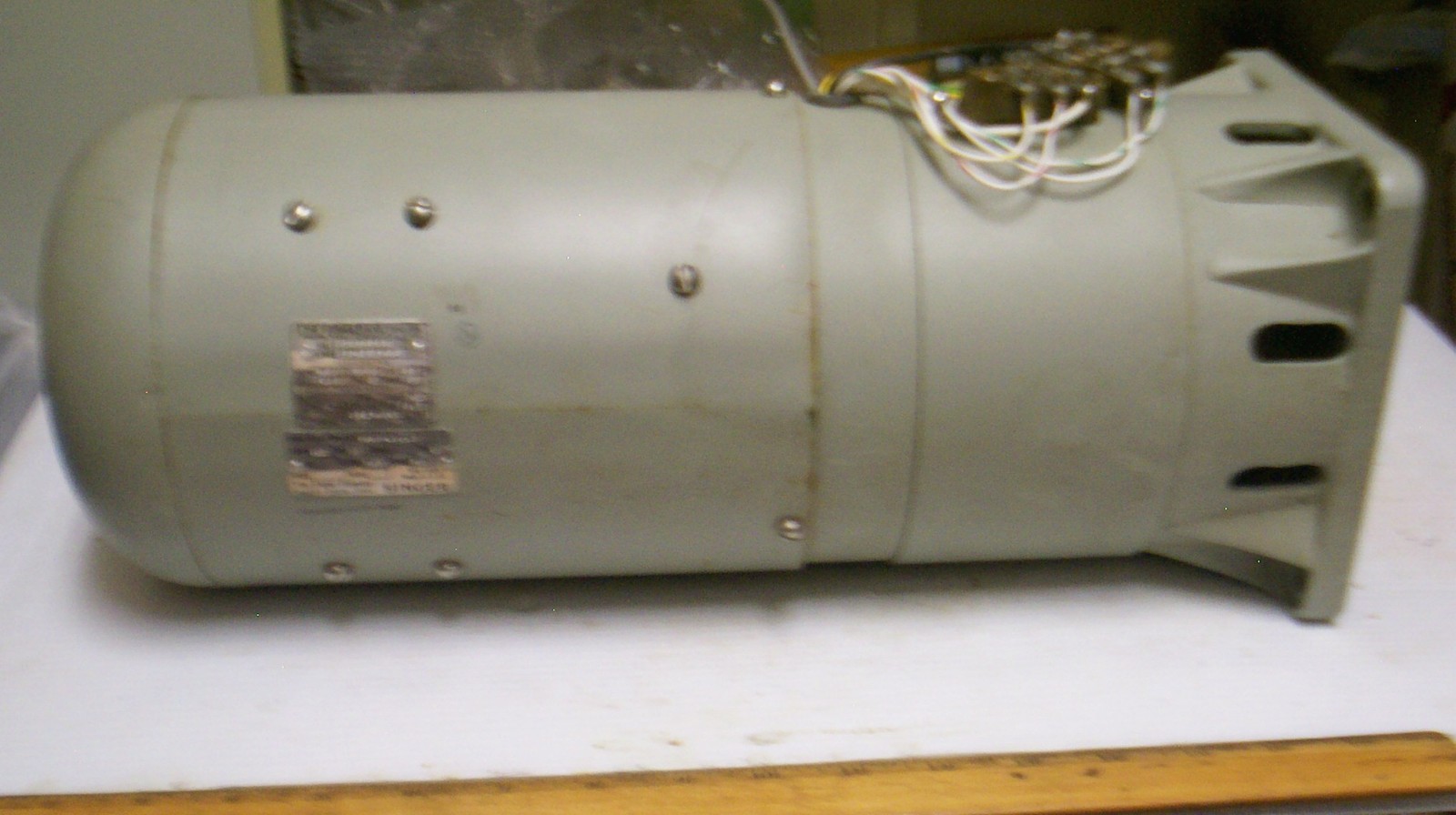

The Singer Co. - Electric Motor with Splined Shaft (NOS)

NOS = New Old Stock

This item cross-references to the following....

Kearfott Corporation
P/N: ZP143-2294-2
P/N: 2-722970-00

NSN: 6105-00-437-7840

There are two nameplates on the motor.

The first nameplate has the following....
THE SINGER CO. DIEHL DIV.
FINDERNE - SOMERVILLE, N.J. U.S.A.
No. 78199302
Cat. No. 2P1432294-2
SERVOMOTOR
VOLTS 90 / 90 CYC. 60
WATTS OUTPUT 400 PH. 2 POLES 2
TACHOMETER
VOLTS PH. CYC. D,C
VOLTS - OUTPUT PER 1000 R.P.M. 6.5
UG2 - 010
1716-00

The second nameplate has the following....
ITEM IDENT. 05088- FRF 82 - 24 0 (?? - We are not sure if the last number ia a "0" or not!)
Volts 115 Hz 60 Amp Ph. 1
Hp R.P.M. 3400 Duty FAN
Cap 3MFD Rise 55
The Singer Company
Kearfott Division (Diehl)
Mfg. 09301
Made in U.S.A,
SINGER

There is a number stamped on the motor it is....
FSN 6105-437-7840

The overall size of the motor is...
17 1/4" X 6 1/4 X 6 1/4

The splined shaft is 1" x 5/8" Diameter

There are 14 splines on the shaft.

There are four mounting holes, they are 7/16" Inner Diameter

Weight: 36 LBS.

Unused!

The electrical terminal block where the wires are attached to is damaged and needs to be replaced.
(See Pictures)

There is a dent on the end where the squirrel cage fan is, the dent is approximately....
1" x 3/4" x 3/16" deep.
We are able to spin the squirrel cage fan freely, using a pen.
But we do not know if the dent will affect the fan when it is turned on.
(See Pictures)

There is a little rust.
(See Pictures)
